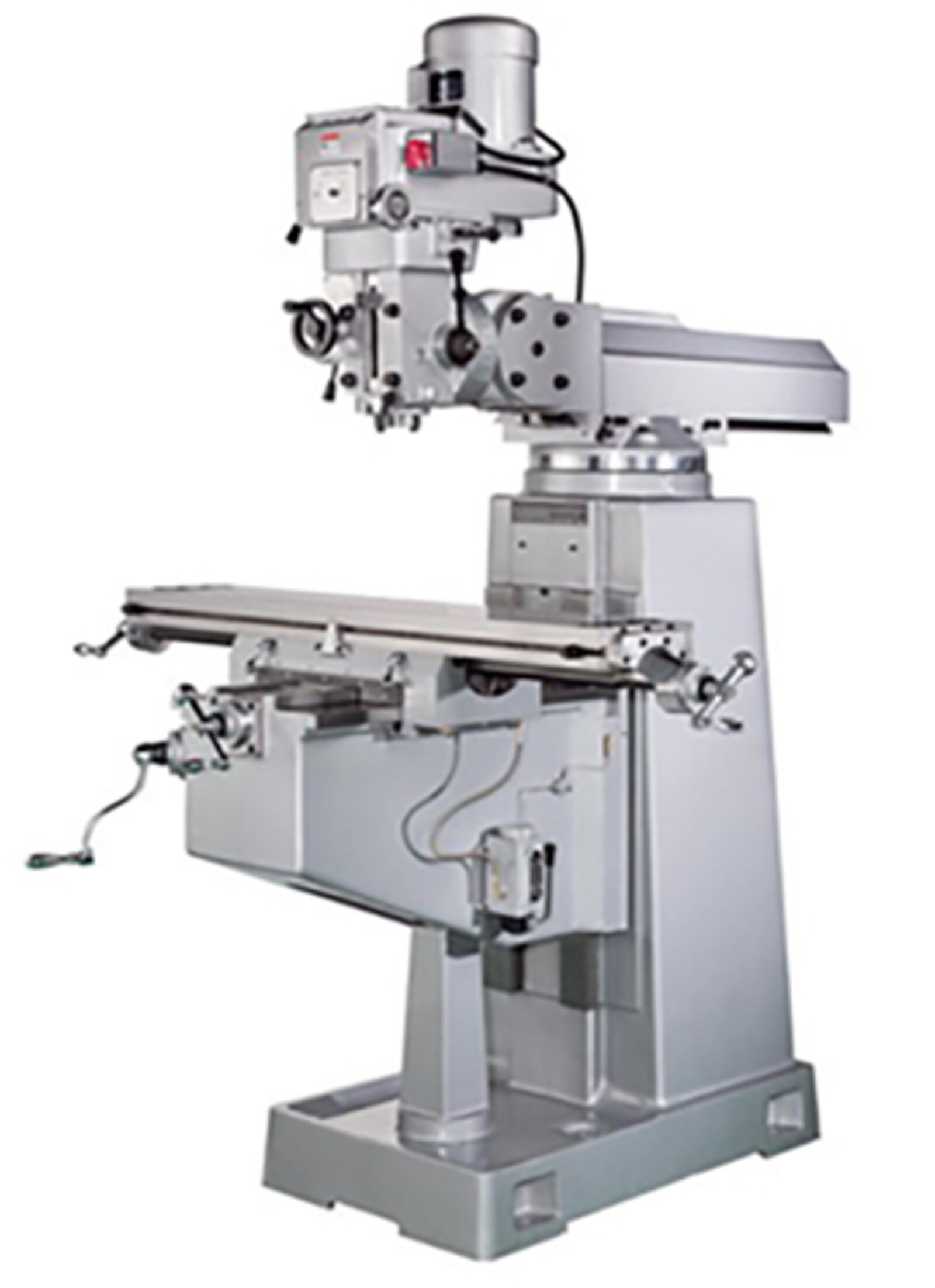

Vertical Knee Mill
Manufacturer: SHARP TMV-1
| Table | |
| Working surface | 10″ x 50″ |
| T-slot number, size | 3, 5/8" |
| Capacity | |
| Table travel (X-axis) | 39″ |
| Saddle travel (Y-axis) | 16.5″ |
| Ram travel | 19″ |
| Quill travel (Z-axis) | 5.3″ |
| Knee travel | 15.3″ |
| Throat distance (min-max) | 4-30″ |
| Spindle gage line to table top | 2.3-17.7″ |
| Spindle | |
| Motor (220/3/60) | 5 HP |
| Wiring voltage | 220V / 440V, 3 Ph, 60 Hz |
| Taper | NST #40 |
| Speed (vari – speed) | 60-4,500 RPM |
| Quill feed (IPR) | 0.0015, 0.003, and 0.005 |
| Accuracy | 0.0001″ TIR |
| Head tilt; right to left (ea. way) | 90º |
| Head tilt; up-and-down (ea. way) | 45º |
| Dimensions & Weight | |
| Floor area (w x d) | 7′ x 6.5′ |
| Height | 7.7′ |
| Net weight (lbs; approximately) | 3,200 |
