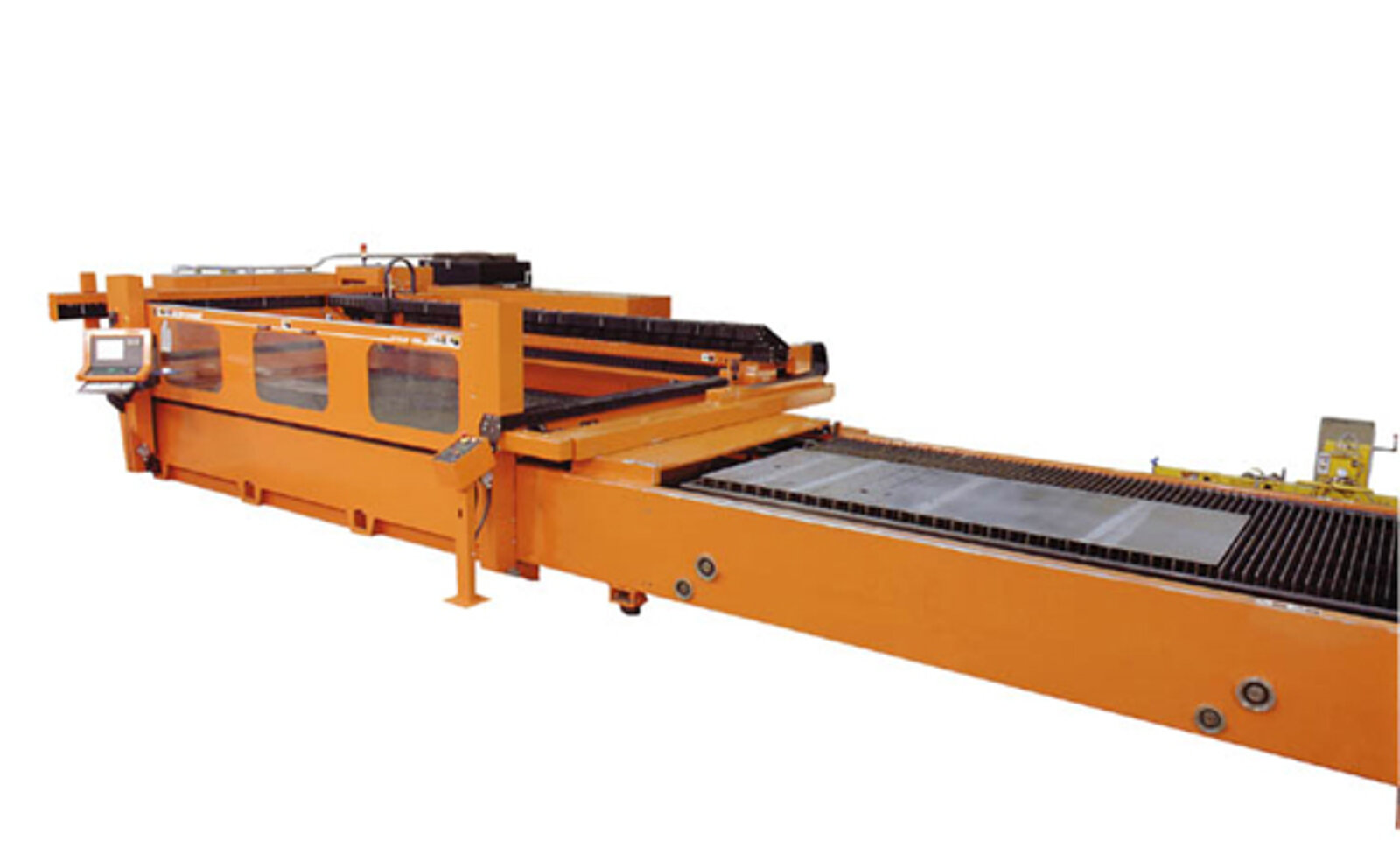

Bystronic Laser 3K

Manufacturer BYSTRONIC LASER CUTTING SYSTEM 3K

Types of Materials Max Thickness
Steel 02 3/4″
Stainless N2 Fine 1/4″
Aluminum N2 0.25
Specifications By Autonom 4020
Nominal sheet size 157″ X 78″
Cutting Range X=157″ / Y=78″ / Z=6.70″
Maximum Simultaneous positioning speed 3346 in/min
Maximum axis acceleration 118 in/s2
Operation with touch screen & manual control unit yes
Position accuracy ±0.004″
Repeatability ±0.002″
Edge detection precision ±0.020″
Max work piece weight 3000 lbs
