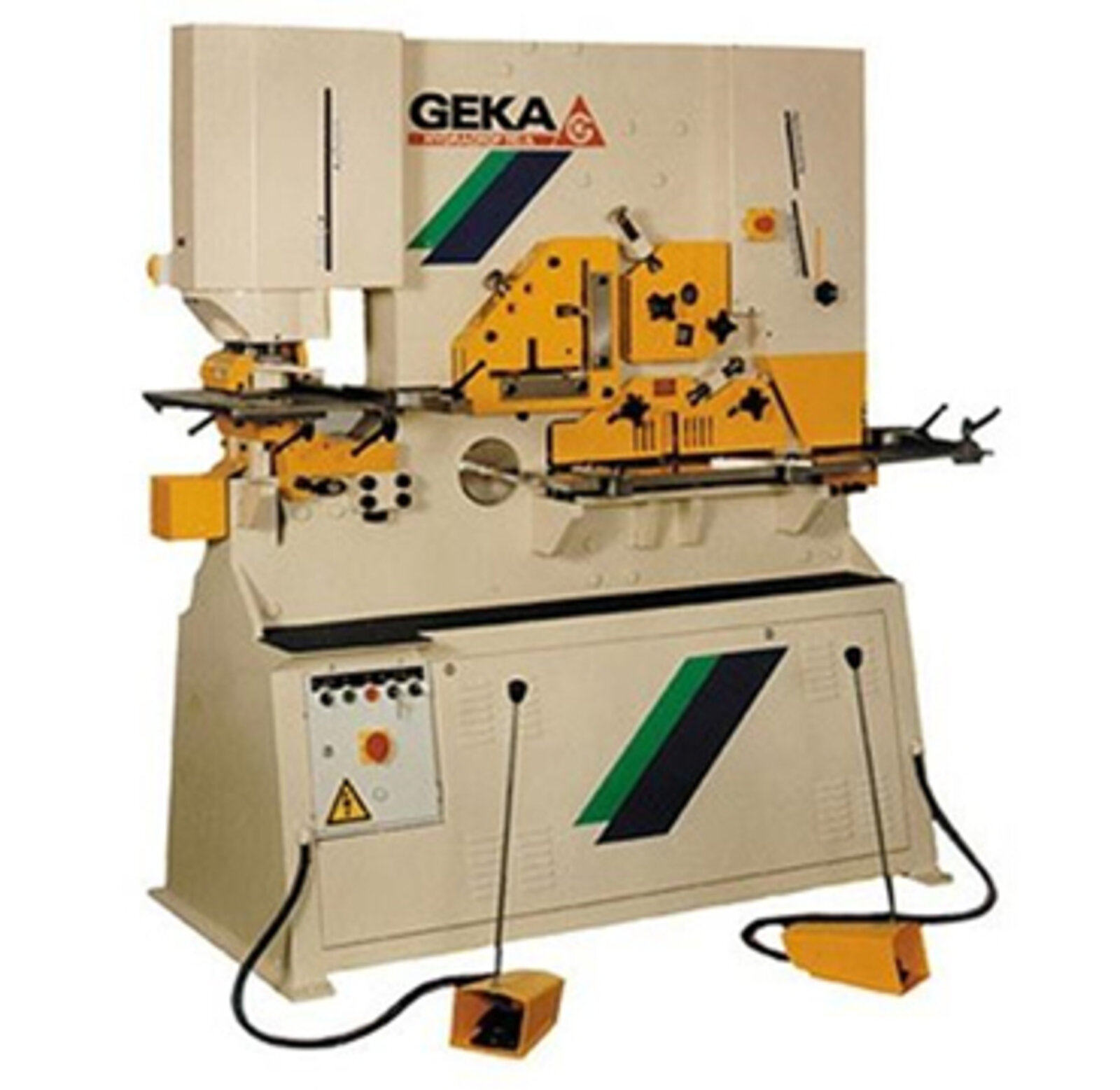

Iron Worker
Manufacturer: GEKA HTD-70
| Specifications | |
| Punching capacity | 70 Ton |
| Dia x sheet thickness | Ø 28 x 20 mm |
| Max course | 80 mm |
| Strokes/min | 40 str / min |
| Depth of throat | 300 mm |
| Worklevel | 1065 mm |
| Max cutting-thickness in plate | 20 mm |
| Blade length | 455 mm |
| Angle 45° in flange L-profile | No |
| 90°-cut | 130 x 130 x 13 mm |
| 45°-cut | 90 x 90 x 10 mm |
| Work level | 1065 mm |
| Cut to length round/square | 45 mm |
| Electric motor (power) | 7.5 kW |
| Length | 1800mm |
| Depth | 1200mm |
| Height | 2000mm |
