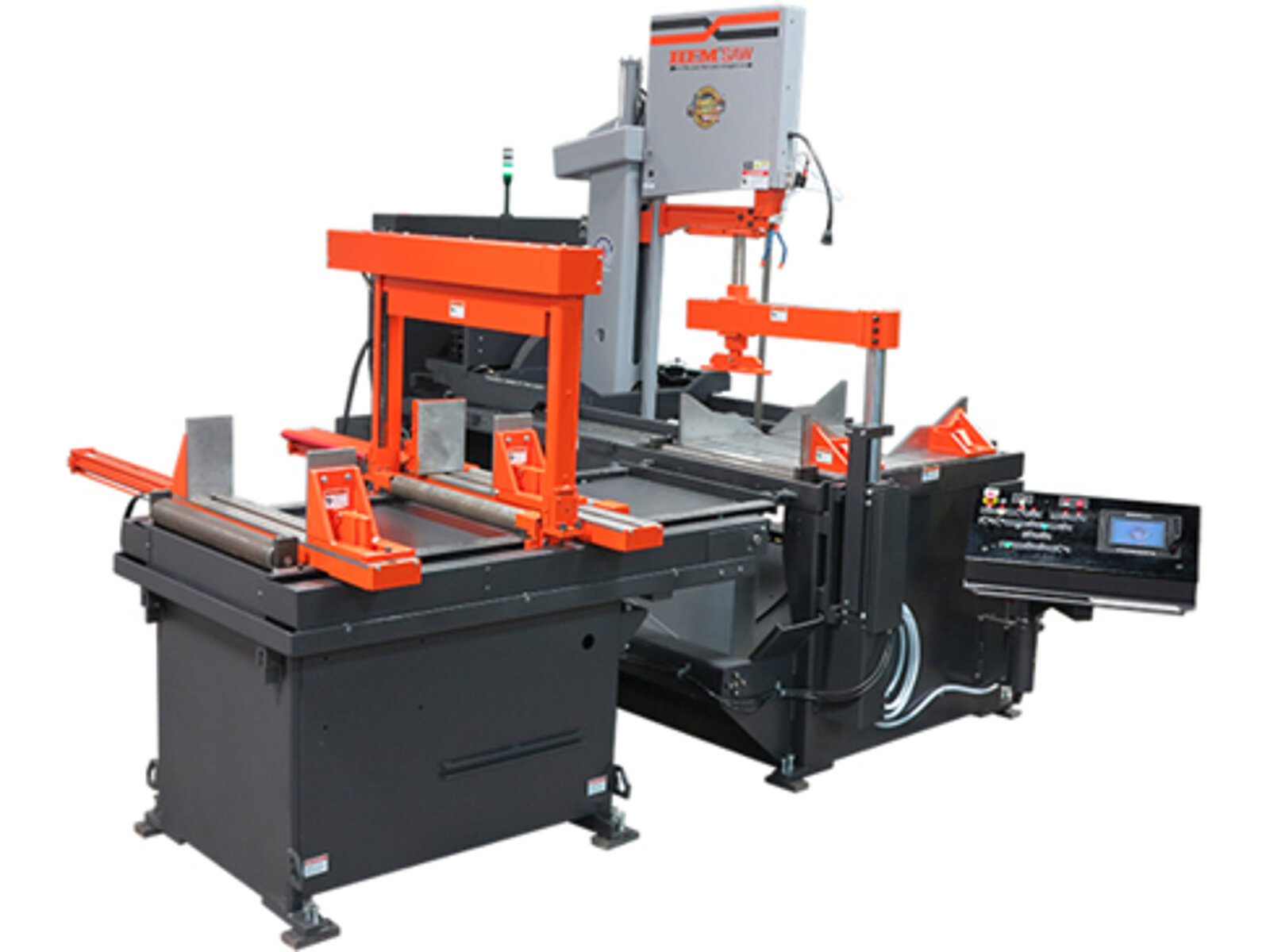

HEM Vertical Band Saw

Manufacturer: HEM VT140HA-60 CTS

Specificaiton
Capacity 22″ W x 30″ H @ 90°
Miter 22″ W x 20″ H @ 45° Left
Miter 22″ W x 20″ H @ 45° Right
Miter 22″ W x 13.5″ H @ 60° Left
Miter 22″ W x 13″ H @ 60° Right
Arm Cant 4 degree
Bar-Feed 0-46" Stroke Hydraulic Motor
Motor 10 HP

Standard Features

  • Adjustable Clamping Force
  • Full Stroking Main Vise
  • Blade Brush
  • Powered Blade Tension
  • Boltable Side Wings for Coolant Drainage
  • Powered Guide Arm
  • Broken Blade Indicator
  • Safety Guards
  • Carbide Blade Guides
  • Adjustable Blade Speed w/ Readout on Touch Screen
  • Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
  • Swing-Away Control Console w/ 7” Touch Screen
  • Flood Coolant System w/ Wash-Down Hose
  • Powered Programmable Tilt w/ Angle Readout
  • Forward Cut Stop
  • 220V/440V/3PH Electrical Motor Requirement
