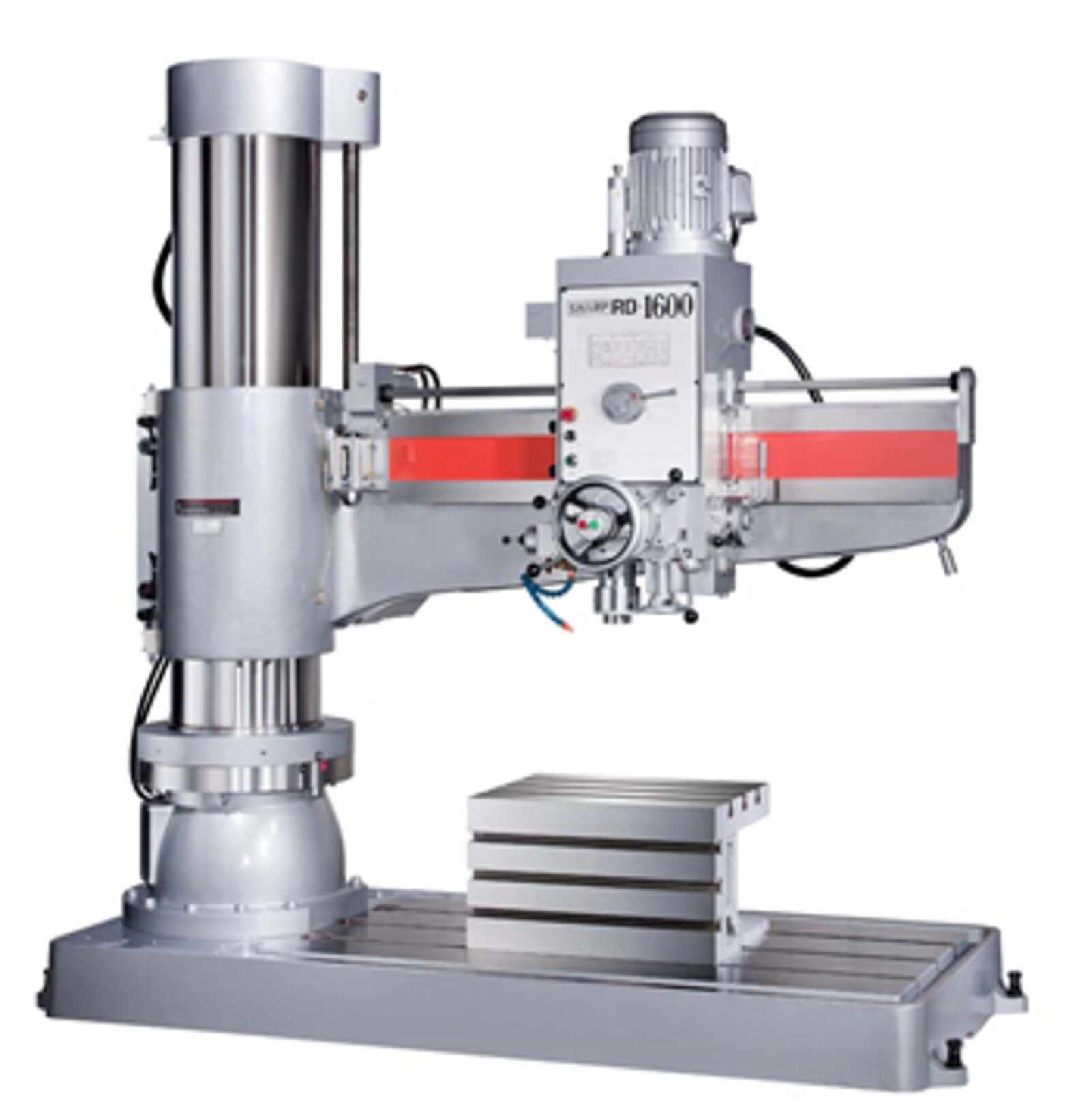

Radial Drill

Manufacturer: SHARP RD-1600

Radial Drills	RD-1600
Diameter of Column	17″
Distance from column surface to spindle center, Max	63″
Distance from column surface to spindle center, Min	13.37″
Travel of Spindle Head	49.62″
Distance from base surface to spindle center, Max	63″
Distance from base surface to spindle center, Min	13″
Elevating Height of Arm	35.44″
Taper hole in spindle	#5 MT
Stroke of spindle	14.57
RPM of Spindle (range x steps)	40-1920 x 12 steps
Main Motor (HP)	7.5 HP
Clamping Motor for column and gear box	1 HP
Clamping Motor for arm	1/2 HP
Coolant Pump (HP)	1/8 HP

General
Measurement (LxWxH)	114″ x 56″ x 115″
