Biological

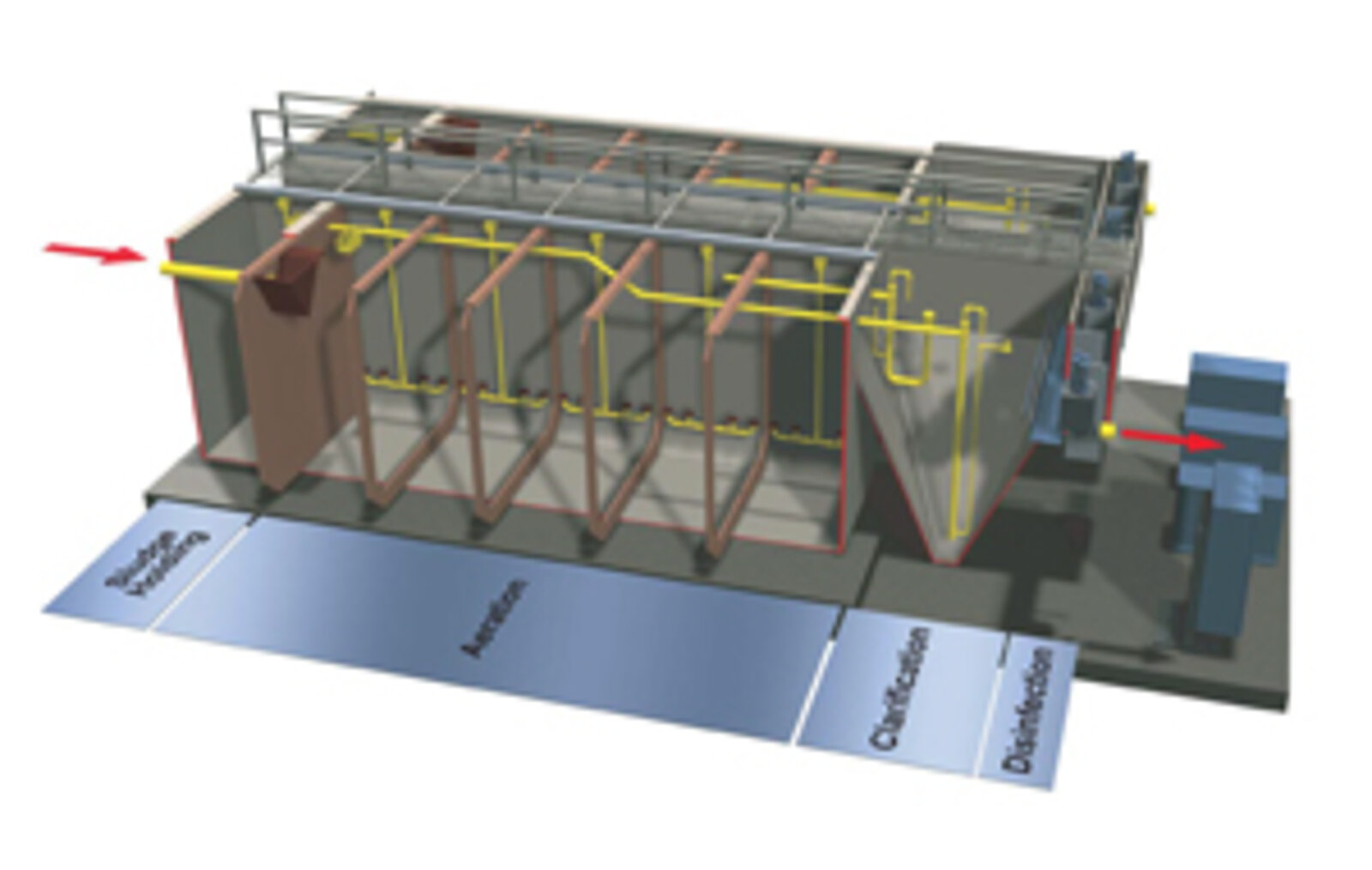

Zi-Biox® Package Wastewater Treatment Plants

Kusters Water offers a complete line of packaged biological wastewater treatment systems. Standard Plants are designed to operate in the extended aeration mode of activated sludge, providing 24-36 hours of aeration retention time allowing the plant to operate effetively over widely varying flow rates and waste loadings while providing lower overall solids production. When required, the system design can be modified to provide advanced forms of treatment, such as phosphorus (P) and nitrogen (N) removal.

Product Brochure

  • Complete factory built and painted
  • Cost effective alternative to RBC’s
  • Cost effective alternative to SBR’s
  • Chlorine / De-Chlorine disinfection
  • Screened influent
  • 85-95% Removal of BOD and TSS
  • Above and below grade installation
  • Biological nutrient removal (BNR)
  • Froth spray system
  • Fine screening system
  • Ultrasonic flow indication
  • U.V. disinfection
  • Flow equalization
  • Circular configuration for higher flows

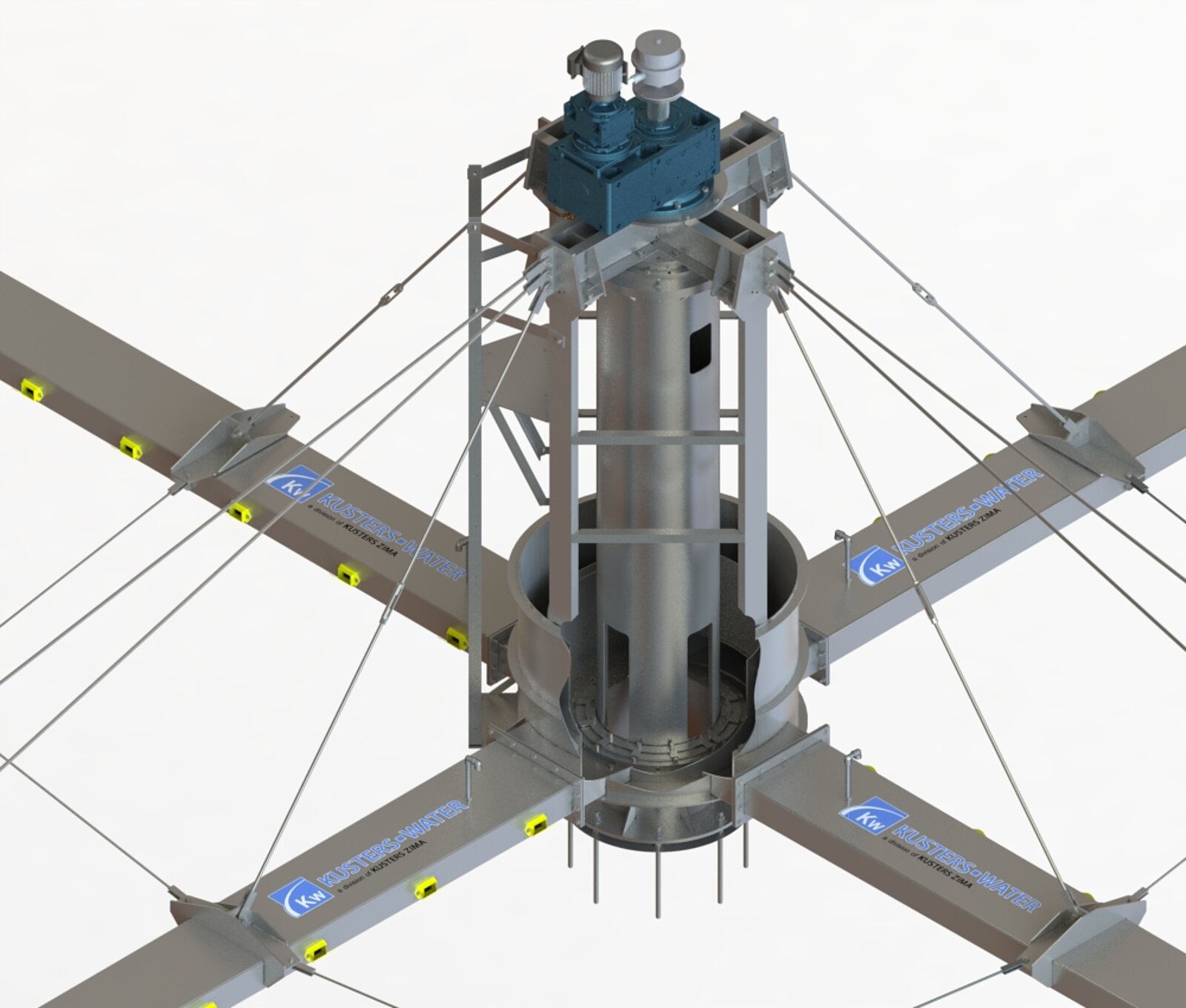

Zi-Biox® Trickling Filter Distributor

Kusters Water offers a complete line of rotary distributors for use in industry and municipal applications. All Kusters Water distributors are computer designed to provide a uniform flow distribution, high BOD removals and a stable effluent. Every Kusters Water distributor arm is tapered to maintain fluid velocity. The arms are available in two crossectional designs: Rectangular arms equipped with side mounted nozzles or Trapezoidal arms with integral flow deflectors. Optional direct drives are available to provide more controllable wetting rates (SK Values) resulting in improved filter performance.

All Styles are available in two or four arm designs and manufactured in hot dip galvanized steel, aluminum, or stainless steel. Every distributor is designed to ensure low maintenance, provide energy efficiency, and deliver consistent performance that result in lower power and maintenance costs, and years or trouble free operation.

Product Brochure

  • Sealless or Sealed Tub Design
  • Large Orifice Openings (minimizes plugging)
  • Adjustable Orifice Plates
  • Maintenance Free Lower Guide Bearing
  • 200,000 Hr (>20 yrs) upper bearing B-10 life
  • Direct Coupled Drive Assembly
  • Variable Speed Controller
  • Stainless Steel Construction
  • Aluminum Construction
  • Explosion Proof Components
