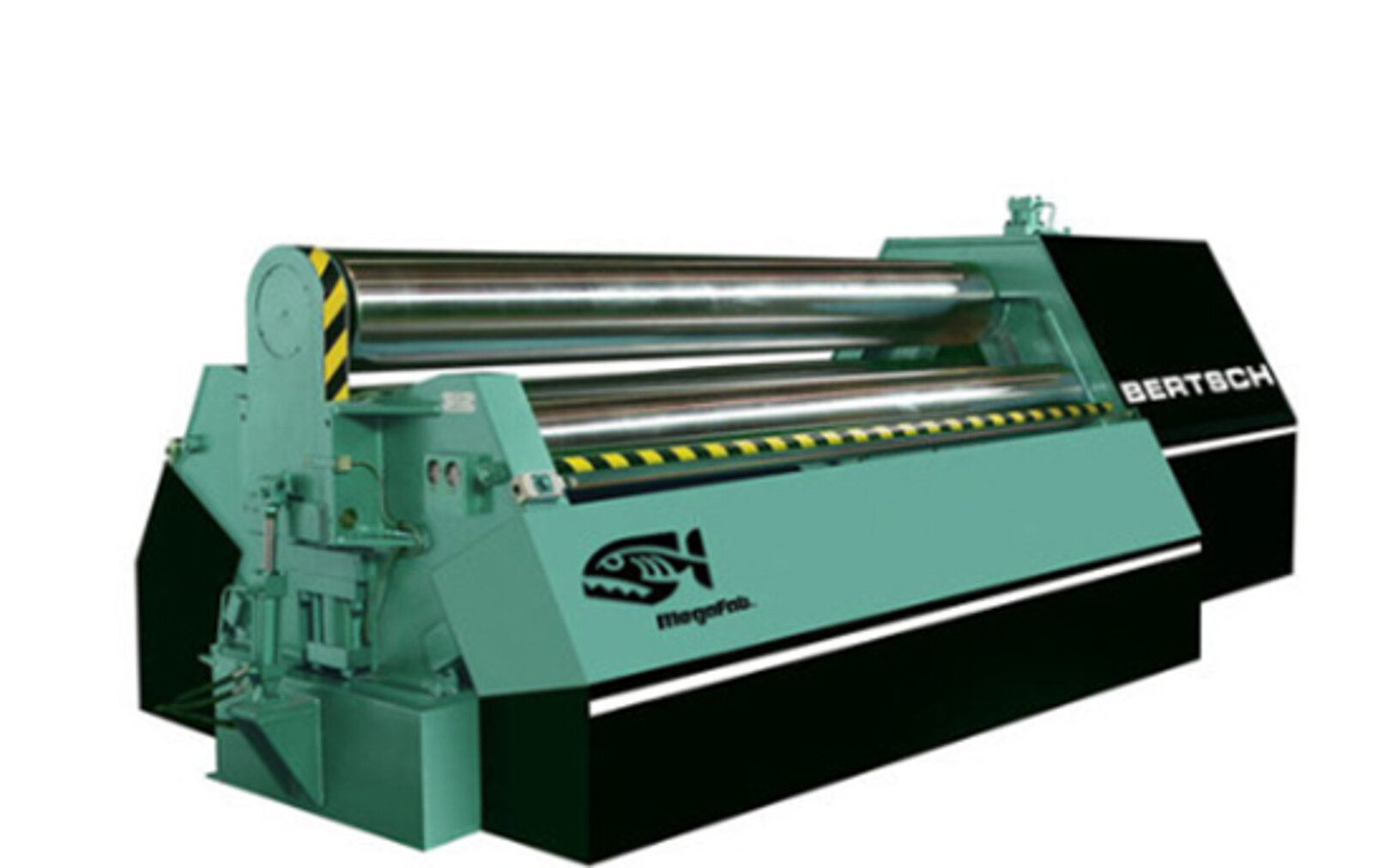

10′ Plate Roller

Manufacturer: BERTSCH 4 Roll 25-10 HYDRAULIC

Standard Rolls
Nominal Thickness .250"
Width 120"
Top Roll Diameter 9.0"
Pre-Bend Capacity .25"/120"
5 Times Top Roll Diameter
Diameter 45.00″
max Thickness @ 100% Width .304"
max Thickness @ 70% Width 0.364"
max Thickness @ 30% Width .556"
Minimum Diameter (@ Max Width)
Thickness 0.203″
Diameter Single Pass 11.0″
Thickness 0.266″
Diameter Multi-Pass 17.5″
